Why PeopleSoft is NOT API-First and What That Means for Integrations

(Struggling to bridge the legacy gap? Cedar Hills Group provides specialized PeopleSoft integration consulting to help teams design, build, and optimize their connection strategies.)

In modern software architecture, the phrase “API-first” has become a guiding principle. The blueprint is sensible: you model your data and business logic first, expose them through a clean API layer (typically REST, GraphQL, or gRPC), and then treat your user interfaces—whether web, mobile, or third-party integrations—as just another client of that API. The API is the primary contract; the UI is just one consumer.

In a modern API-first application, the architecture looks something like this:

  ---
title: "API-First Architecture - Sample Schematic (Absolutely NOT PeopleSoft)"
---

%%{init: {'theme': 'redux'}}%%

graph TD
    User([Web/Mobile UI])
    API[Granular REST API Layer]
    IntentAPI["(Optional) High-Level Intent-Based API Layer<br/> Orchestrates Multiple API Calls"]
    %% API --- IntentAPI
    DB[(Database)]
    User -->|HTTP request <br/> JSON | API
    User -->|Intent-based request| IntentAPI

    IntentAPI -->|Orchestrates| API

    API -->|Calls| Service[Business Logic Service]
    Service -->|SQL Queries| DB

• A granular API layer exposes your data models and operations in a consistent way. These APIs are the single source of truth for how data is accessed and modified.
• A higher-level “intent-based” API layer can abstract away the underlying database structure. For instance, a client makes a single call to “Hire Employee” rather than orchestrating multiple manual writes to write to the EMPLOYEE, JOB, and PAYROLL tables.
• The business logic lives in a service layer that runs independently of whether the call came from a web browser, a mobile app, or a background process.
• There are often things that cannot be done in the UI that are exposed in the API.

Achieving an API-first design requires an upfront commitment to decoupling business logic from the user interface. Your data validation and security rules must run without relying on the presence of a screen.

If you try to apply this mental model to PeopleSoft, you will immediately run into a wall. PeopleSoft is not, and was never designed to be, an API-first platform. It is a UI-first architecture where the primary container for business logic is the Component, and validations are embedded in PeopleCode events that are tightly coupled to the user interface. Exposing APIs on top of this architecture requires retrofitting heavy wrappers like Component Interfaces that simulate browser interactions just to trigger the underlying logic.

If you are an external vendor trying to integrate with PeopleSoft, or an internal developer tasked with building real-time integrations, you probably expected a suite of standard APIs. Unfortunately, that’s not the reality.

To build successful PeopleSoft integrations, you need to understand why this architecture is inverted, what is actually happening under the hood, and how to work around it.

Understanding the UI-First Architecture of PeopleSoft

To understand why PeopleSoft is UI-first, we have to look back at the history of PeopleTools. Developed originally for client-server environments in the 1990s, the platform was designed around desktop windows and forms. When Oracle/PeopleSoft transitioned to the web in the early 2000s with PeopleTools 8.0, they didn’t rewrite the core backend application. Instead, they built the PeopleSoft Internet Architecture (PIA)—essentially a web rendering engine that translates those same desktop components into HTML and JavaScript.

For online developers back then, this was magic: you drag and drop fields in Application Designer, write some PeopleCode, and the system handles the HTML generation and state management. But for integration developers today, it’s an architectural prison.

In a modern API-first system, CRUD (Create, Read, Update, Delete) operations are isolated in a backend service layer. In PeopleSoft, the business logic is trapped inside the Component Buffer—an in-memory structure that mirrors the page layout.

  %%{init: {'theme': 'redux'}}%%

graph LR
    WB[Web Browser User]
    COMP[Component - Primary Container of Business Logic]
    Pages@{ shape: processes, label: "Pages - Organizes Layout" }
    BusinessLogic[Business Logic in PeopleCode Events]
    DBT["Records (Database Tables)"]
    CRUD[CRUD Operations]
    WB -->|HTTP request| COMP
    DB[(Database Tables)]
    COMP --> Pages
    COMP --> BusinessLogic
    COMP -->|Maintains Parent Child Relationship| DBT

    DBT -->|Controls Commits| CRUD
    CRUD -->|SQL| DB

When a user accesses a PeopleSoft Component—like creating or maintaining users via the URL http://psdemodemo.internal/psp/ps/EMPLOYEE/SA/c/MAINTAIN_SECURITY.USERMAINT.GBL—they are loading the USERMAINT Component.

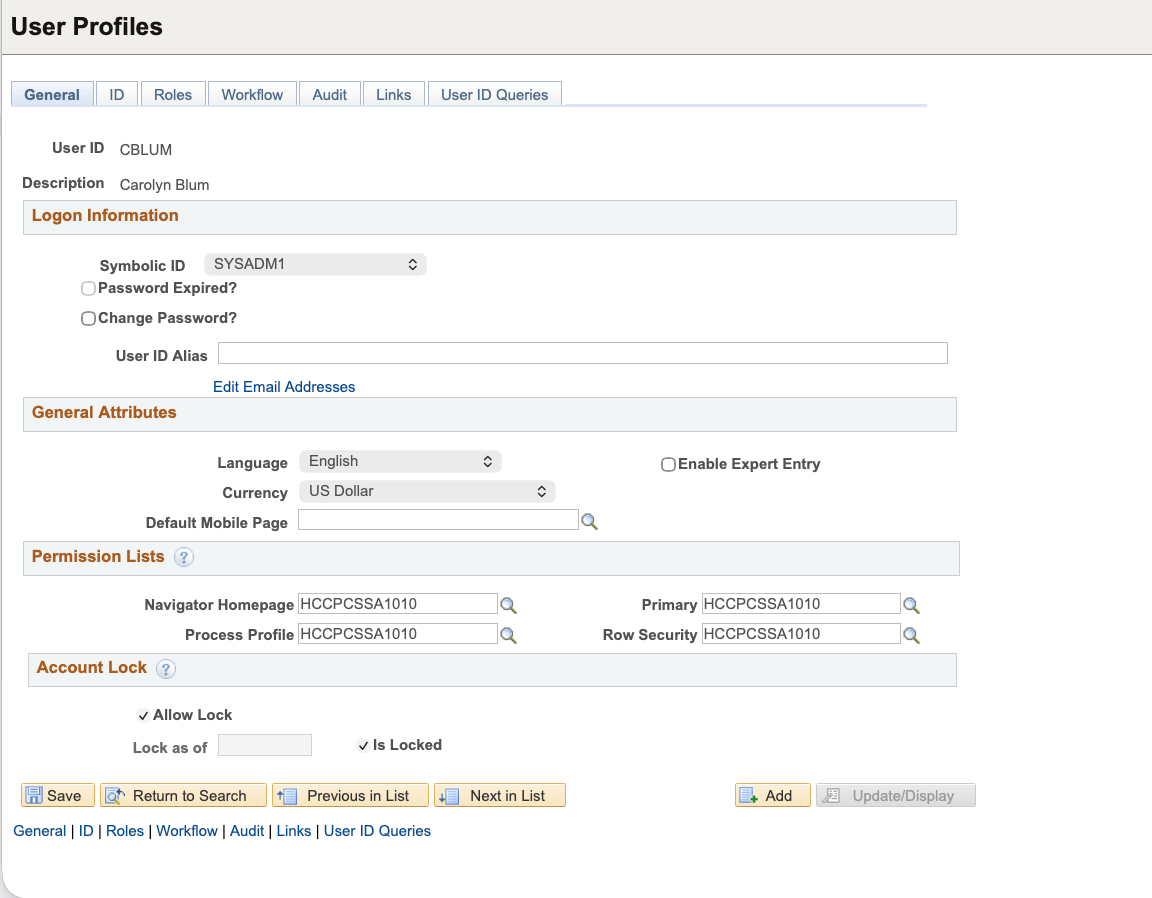

The rendered page looks like this:

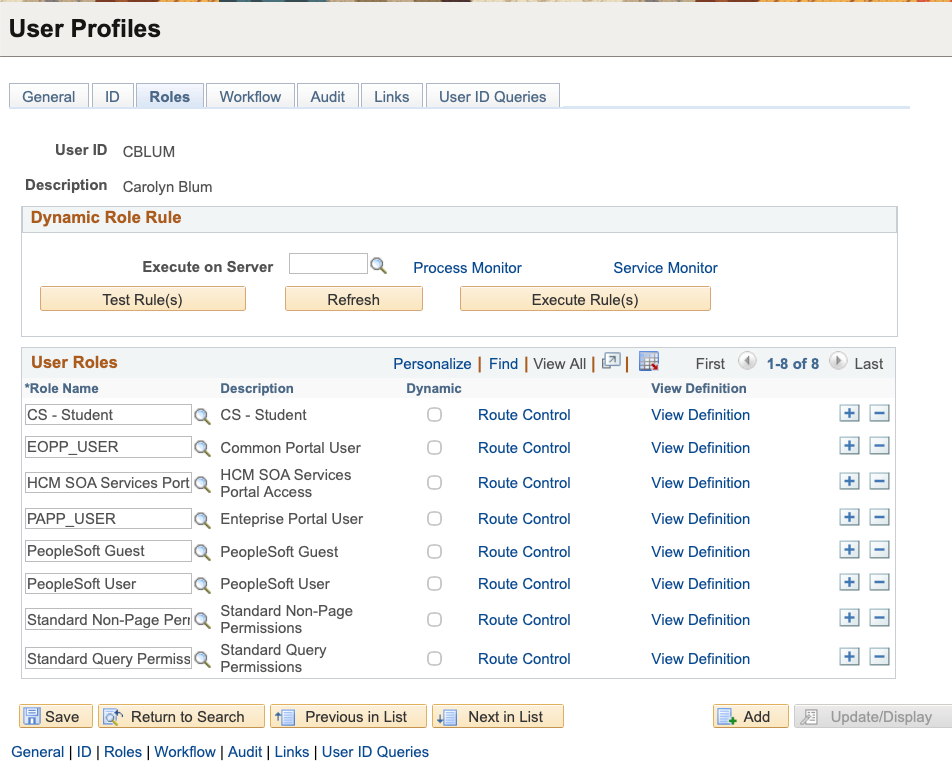

And the second tab contains child records:

In the Application Designer IDE, the Component is defined by these pages and the fields mapped to database tables:

When a user interacts with the browser, PeopleTools manages the Component Buffer in memory on the application server. As fields change, PeopleTools fires specific PeopleCode events:

• FieldEdit & FieldChange fire as the user tabs between fields.
• RowInsert & RowDelete fire as rows are added or removed from a grid.
• SaveEdit & SavePreChange fire when the user clicks the “Save” button.

Because there is no standalone API layer, the business logic and validation rules are bound to these UI events. If you want to insert a row into a core table (like JOB or ACAD_PROG) and ensure it is validated, you cannot simply execute a SQL insert or call an isolated function. You must load and execute the Component itself.

  %%{init: {'theme': 'redux-color'}}%%

graph TD
    User([Web Browser User]) -->|HTTP request| PIA[PIA Web Server]
    PIA -->|Component Name & Keys| AppServer[Application Server]
    AppServer --> Comp[UI Component Container]
    subgraph Comp ["Component - UI Element"]
        Pages[Pages - UI Layout]
        BusinessLogic[Business Logic in PeopleCode Events]
    end
    Comp -->|SQL Updates| DB[(Database Tables)]

Everything in the online transaction is built around this page-buffer loop. There are no direct APIs to call, no service layer to run, and no way to trigger validations without going through the Component.

The Batch Layer and Staging Table Fallback

Because real-time APIs are so difficult to construct in PeopleSoft, the platform has historically relied on a fallback: the batch processing layer.

In many modules, integrations aren’t real-time at all. Instead, teams use the Staging Table + App Engine pattern. An external system writes raw data directly to custom staging tables (completely bypassing validation), and then a scheduled Application Engine, COBOL, or SQR process runs to read, validate, and write the data into the production tables.

  %%{init: {'theme': 'redux'}}%%

graph TD
    User([Web Browser User]) -->|HTTP request| PIA[PIA Web Server]
    PIA -->|Component Name & Keys| AppServer[Application Server]
    AppServer --> Comp[UI Component Container]
    subgraph Comp ["Component - UI Element"]
        Pages[Pages - UI Layout]
        BusinessLogic[Business Logic in PeopleCode Events]
    end
    Comp -->|SQL Updates| DB[(Database Tables)]

    Batch["Batch Process<br/>Contains Business Logic<br/>(Application Engine/Cobol/SQR)"] -->|Direct SQL or CI| DB

    Comp -->|"(Optional) Could Trigger"| Batch
    Batch -->|Reads/Writes| DB

    PRCSSScheduler[Process Scheduler] --> Batch

While this batch pattern works for high-volume data, it introduces significant latency, lacks immediate feedback for errors, and forces developers to manage complex job scheduling via the Process Scheduler.

Integration Broker: The Click-Heavy Gateway

PeopleTools does include an integration engine called the Integration Broker (IB), and over the years Oracle added SOAP and REST capabilities to it. (I have a whole book about it. Check the sidebar.)

However, calling IB a “modern developer experience” is a stretch. Building a REST API in Integration Broker is a notoriously tedious, click-heavy process. Developers must manually define Documents, construct Message structures, map them to Service Operations, write custom handler classes in PeopleCode, and configure routings. There is no simple @RestController or command-line generator; exposing a single endpoint is an exercise in configuration management.

Component Interface: The Programmatic User

To allow integrations to write data while respecting online business logic, Oracle introduced the Component Interface (CI).

A Component Interface is not a lightweight API. It is a programmatic wrapper around an online Component. When an external call or a batch process runs a CI, PeopleTools instantiates the entire Component buffer in memory on the application server and simulates a user entering data, tabbing through fields, and clicking save.

  graph TD
    httpClient[External Client] -->|REST/SOAP API Call| IB[Integration Broker]
    IB -->|Trigger CI Handler| CI[Component Interface Wrapper]
    subgraph CI ["Component Interface (JOB_DATA_CI)"]
        Buffer[Memory-Instantiated Component Buffer]
        Properties[CI Properties & Collections]
    end
    Buffer -->|Simulates User Data Entry| Comp[Component Engine]
    Comp -->|Fires Online Events: SaveEdit, SavePreChange, etc.| DB[(Database Tables)]

While CIs are the only supported way to safely write data to core tables, they carry heavy architectural baggage:

1. Tied to UI: The API surface of a Component Interface is tightly coupled to the underlying online Component. Any changes to the Component layout, field names, or UI logic can break the CI.
2. UI Dependency Gotchas: If the underlying Component contains code that opens a dialog (WinMessage), redirects the browser (TransferPage), or runs on page load (Page Activate), the CI will crash. Developers must litter their code with guard clauses (e.g., If %CompIntfcName <> ...) to keep the CI from tripping over UI-only functions.
3. Duplication of Validation: CIs do not automatically pass UI hints, prompt table edits, or search views to the caller. The calling application has to recreate that validation logic on its own side.

CI is the only way to execute the business logic that lives in the online Component, but that comes at the cost of heavy coupling, UI dependencies, and performance overhead.

SWS: A Pragmatic GET-Only Alternative

If writing data to PeopleSoft requires the heavy machinery of Component Interfaces, how should we handle reading data?

This is where my product, Simple Web Services (SWS), fits in.

SWS is a bolt-on utility designed to expose PeopleSoft data as clean, standard REST APIs using configuration and SQL. But SWS is intentionally GET-only (read-only). Here is why:

1. Reads are inherently safe: Reading a student record or checking an employee’s supervisor doesn’t trigger state changes or run complex validations. You don’t need the overhead of the Component Buffer just to pull data.
2. Sub-second Performance: By bypassing the Component Interface and running highly optimized SQL based on metadata, SWS delivers fast, lightweight JSON responses.

For a deeper dive on how SWS acts as a metadata-aware API layer for modern consumers, check out Using SWS as the Data Layer for AI Agents .

Bridging the Gap

PeopleSoft isn’t going anywhere, but you cannot integrate with it as if it were a modern SaaS platform. To succeed, you must design with its UI-first architecture in mind:

• Use direct, metadata-aware read APIs (like SWS) for queries, reporting, dashboards, and AI agent contexts.
• Reserve Component Interfaces strictly for transactional writes where you must execute delivered validations.
• Consider staging tables for high-volume, bulk data loads where real-time API performance is non-viable.
• Establish an API abstraction layer (like an API gateway or wrapper) to shield external systems from the complexities of PeopleTools.
